Renoir corner sofabed - converting from right to left hand chaise

This sofabed can easily be converted from the factory default setting of having the chaise on the right of the sofa, to having the chaise to the left....

Step 1

On the chaise unit, swap over the side brackets - remove the left hand side brackets and refit on the right and vice versa, swap the right hand side brackets to the left.

Step 2

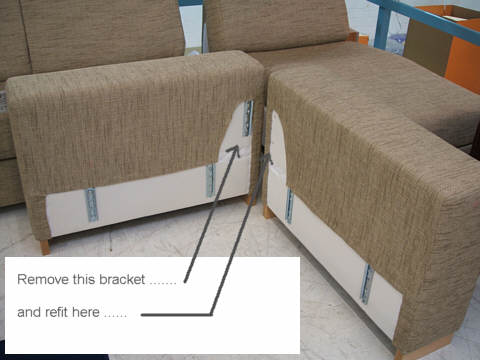

On the arms, you will note the left hand arm has three brackets yet the right hand arm has two - remove the top third bracket from the left hand arm and refit into the same position on the right. The fabric on the right hand arm will need to be pierced to fit the bracket - if you rub your finger across the fabric, the location of the fixing holes can be found.

Step 3

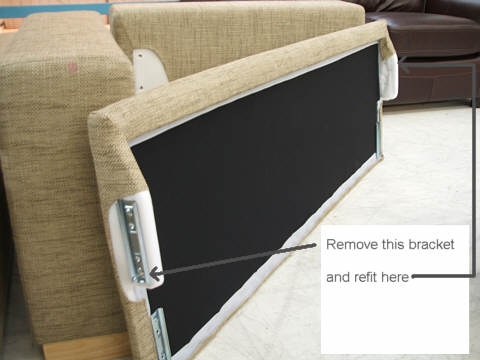

Finally, remove the bracket from the left hand side of the rear panel and refit to the right - as in step 2, the holes are available to fit however you will have to locate them and pierce the fabric.

Step 4

The complete sofa can now be assembled with the chaise on the left - we have found the following order is the easiest :

1) Connect the chaise to the sofa body

2) Fit the back panel

3) Fit the arms

4) Clip on the front panel

Enjoy using your Renoir sofabed !
